What Is AWG 10 and When Should I Use It?
Answer: AWG 10 is a wire gauge size that is commonly used for high-current applications such as power tools, automotive wiring, and home electrical circuits. It is ideal for carrying up to 30 amps of current safely. When choosing the right wire for your project, it's essential to understand what
AWG 10 means and when it's appropriate to use it.
AWG stands for American Wire Gauge, a standardized system used to measure the diameter of electrical wires. The lower the AWG number, the thicker the wire, and the more current it can carry.
- AWG 10
- AWG 10 is a wire size that has a diameter of approximately 2.59 mm and is suitable for carrying up to 30 amps of current in most residential and industrial applications.
- American Wire Gauge (AWG)
- A standardized system used to measure the thickness of electrical wires, where lower numbers indicate thicker wires.
AWG 10 is commonly used in the following scenarios:
- Home electrical circuits for outlets and lighting
- Automotive wiring for battery connections and high-power accessories
- Power tools and extension cords rated for high current
- Low-voltage lighting and landscape lighting systems
If you're working on a project that requires a wire capable of handling up to 30 amps, AWG 10 is a reliable and cost-effective choice. It is also compatible with most standard electrical connectors and terminals.
How Do I Choose Between AWG 10 and Other Wire Sizes Like AWG 0 or AWG 12?
Answer: To choose the right wire size, consider the current load, length of the wire run, and the type of application. AWG 10 is suitable for up to 30 amps, while AWG 12 is for up to 20 amps and
AWG 0 is for higher current applications like 150 amps. Selecting the correct wire size is crucial for both safety and performance. Using a wire that is too thin for the current it needs to carry can lead to overheating, voltage drop, and even fire hazards. Here’s a comparison of AWG 10 with other common wire sizes:
| Wire Size (AWG) | Current Capacity (Amps) | Typical Use | Diameter (mm) |
| AWG 0000 | 350 | Heavy-duty industrial and power transmission | 11.68 |
| AWG 000 | 200 | Large power systems and heavy equipment | 9.27 |
| AWG 0 | 150 | High-current automotive and industrial applications | 8.25 |
| AWG 1 | 130 | Medium to high current applications | 7.35 |
| AWG 10 | 30 | Home circuits, power tools, and automotive wiring | 2.59 |
| AWG 12 | 20 | Lighter home circuits and extension cords | 2.05 |
| AWG 20 | 5 | Low-voltage control circuits and sensors | 0.52 |
For example, if you're running a power line for a 240V electric heater that draws 25 amps, AWG 10 is the right choice. If you use AWG 12 instead, the wire may overheat and fail. On the other hand, if you're working on a 12V car audio system that only draws 5 amps, AWG 16 or AWG 18 would be sufficient and more cost-effective.
What Are the Best AWG 10 Wires for Home and Automotive Use?
Answer: The best AWG 10 wires for home and automotive use are those with high-quality insulation, copper conductors, and appropriate temperature ratings. Look for wires rated for 600V and 105°C for most residential and automotive applications. When shopping for AWG 10 wires, it's important to consider the material, insulation type, and intended use. Copper is the most common conductor material due to its excellent conductivity and durability. Insulation materials like PVC, THHN, and XLPE are commonly used for different environments. Here are some key features to look for when selecting AWG 10 wires:
- Copper Conductors
- Provide excellent conductivity and are the most commonly used material for electrical wiring.
- Insulation Type
- Determines the wire’s resistance to heat, moisture, and abrasion. Common types include PVC, THHN, and XLPE.
- Temperature Rating
- Indicates the maximum temperature the wire can safely operate at. Most residential and automotive wires are rated for 105°C.

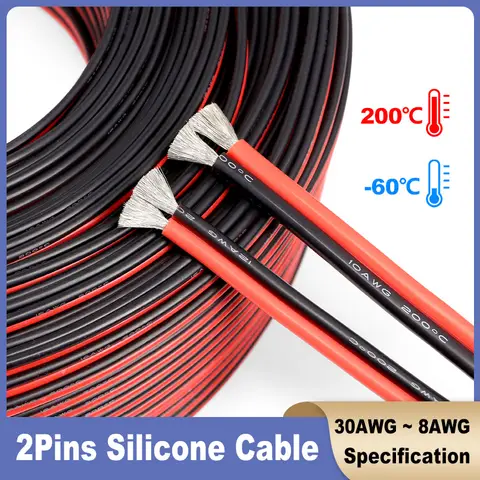

For home use, I recommend using AWG 10 THHN wires rated for 600V and 105°C. These wires are commonly used in residential electrical panels and are compatible with most standard electrical boxes and connectors. For automotive use, AWG 10 wires with silicone or heat-resistant insulation are ideal for under-the-hood applications. These wires can withstand high temperatures and are less likely to degrade over time.
What Do Users Say About AWG 10 Wires and Cables?
Answer: Users generally rate AWG 10 wires highly for their durability, conductivity, and compatibility with most electrical systems. Many users appreciate the balance between cost and performance. Based on user reviews and feedback from online marketplaces like AliExpress, AWG 10 wires are often praised for their reliability and ease of installation. Users frequently mention that they are suitable for a wide range of applications, from home electrical projects to automotive upgrades. Some common user comments include:
- “AWG 10 wires are perfect for my car audio system. They handle the current without getting hot.”
- “I used AWG 10 for my home workshop circuits, and it works great with all my power tools.”
- “The insulation is thick and durable, which is important for my outdoor lighting project.”
Users also appreciate the availability of AWG 10 wires in different lengths and configurations, making it easy to find the right product for their specific needs.
Other Related AWG Sizes and Applications
If you're working on a project that requires a different wire size, you may also be interested in the following related AWG sizes:
- AWG 00 (00 AWG): Used for high-current applications like large power systems and industrial equipment.
- AWG 0 (0 AWG): Suitable for high-current automotive and industrial applications.
- AWG 1 (1 AWG): Often used for medium to high current applications like power tools and home circuits.
- AWG 10 (10 AWG): Ideal for home circuits, automotive wiring, and power tools.
- AWG 12 (12 AWG): Commonly used for lighter home circuits and extension cords.
- AWG 20 (20 AWG): Used for low-voltage control circuits and sensors.
Each of these wire sizes has its own specific use case, and choosing the right one depends on the current load, application, and environment. Always refer to local electrical codes and manufacturer recommendations when selecting wire sizes for your projects.
