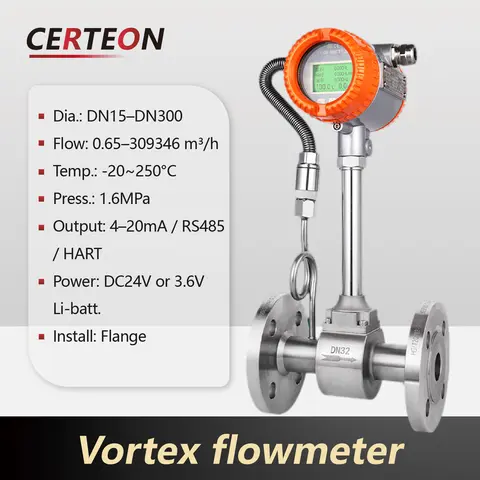

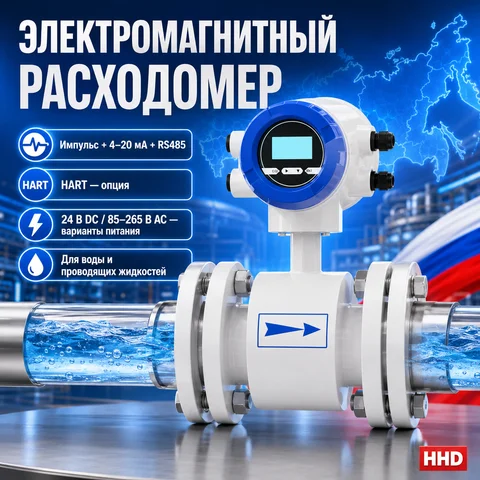

4-20mA Flow Meter: Precision, Reliability, and Real-World Applications

The 4-20mA flow meter is a critical component in industrial automation and fluid monitoring systems, offering precise, long-distance signal transmission for water, fuel, oil, and other liquids. These meters are ideal for applications requiring stable, noise-resistant analog output, making them a top choice for process control, HVAC systems, and manufacturing environments. With robust construction, compatibility with PLCs and SCADA systems, and support for multiple fluid types, 4-20mA flow meters deliver consistent performance across diverse operational conditions.

Understanding the 4-20mA Signal Standard

The 4-20mA signal is a widely adopted industry standard for transmitting sensor data over long distances. Unlike voltage signals, current loops are less susceptible to electromagnetic interference and voltage drops, ensuring reliable data transmission even in electrically noisy environments.

4-20mA Signal

A standardized analog current loop where 4mA represents the minimum flow rate (zero point) and 20mA represents the maximum flow rate (full scale). This allows for easy detection of open circuits (below 4mA indicates a fault).

Live Zero

The use of 4mA as the zero point (instead of 0mA) enables continuous monitoring and fault detection. If the signal drops below 4mA, it indicates a broken wire or sensor failure.

Two-Wire vs. Four-Wire Systems

Two-wire systems use the same pair of wires for both power and signal transmission, reducing wiring complexity. Four-wire systems separate power and signal lines, offering higher accuracy and better noise immunity.

Key Applications of 4-20mA Flow Meters

4-20mA flow meters are extensively used in:
- Water treatment and distribution systems
- Industrial cooling and heating systems (HVAC)
- Fuel and oil monitoring in diesel and gasoline pipelines
- Chemical and pharmaceutical process control
- Agricultural irrigation and pumping stations
These meters excel in environments where continuous monitoring, remote data collection, and integration with control systems are essential.

Real-World Scenario: Monitoring Diesel Fuel Flow in a Generator System

Problem: A facility uses a diesel generator for backup power. The operator needs to monitor fuel consumption in real time to prevent overflow and optimize refueling schedules.
Solution: Install a 4-20mA flow meter on the diesel supply line to provide continuous, accurate flow data to a central control panel.

1. Identify the required flow range: The generator consumes up to 20 liters per minute. Select a flow meter with a measurement range of 1–30 L/MIN to ensure accuracy across the full operating spectrum.
2. Choose a compatible 4-20mA output meter: Ensure the flow meter supports a 4-20mA analog output and is rated for diesel fuel. The HaiHuiLai ZJ-LCD-M model is ideal, with a G1/2 male BSPP thread and built-in magnetic valve for safety.
3. Install the meter in-line with the fuel line: Use proper sealing and pipe fittings. Ensure the flow direction matches the meter’s arrow indicator.
4. Connect to a PLC or control system: Wire the 4-20mA output to a data acquisition module or SCADA system for real-time monitoring and logging.
5. Calibrate and test: Perform a zero and full-scale calibration using a known flow rate. Verify that 4mA corresponds to 0 L/MIN and 20mA to 30 L/MIN.

Answer: A properly installed 4-20mA flow meter enables accurate, real-time diesel consumption tracking, reducing waste, improving safety, and supporting predictive maintenance.

Comparison of 4-20mA Flow Meter Options

Below is a comparison of three relevant products that support 4-20mA output or are compatible with such systems:

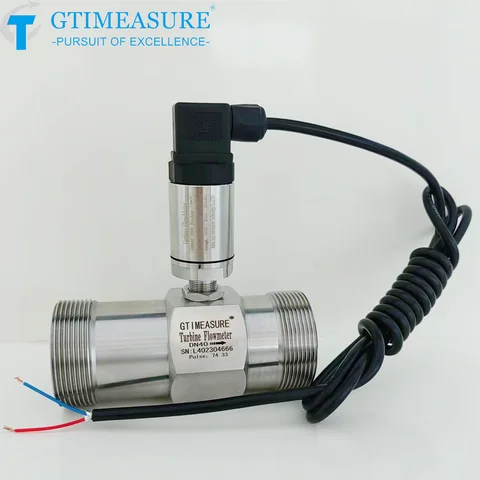

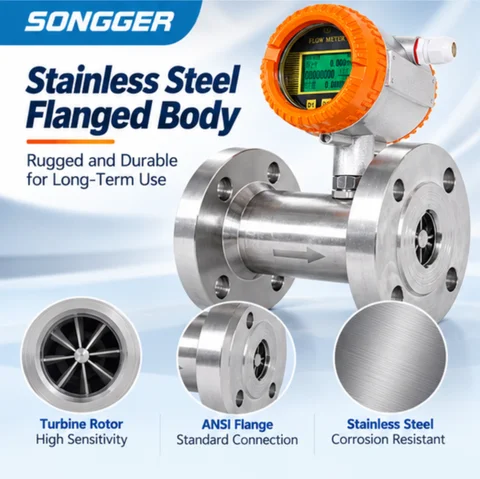

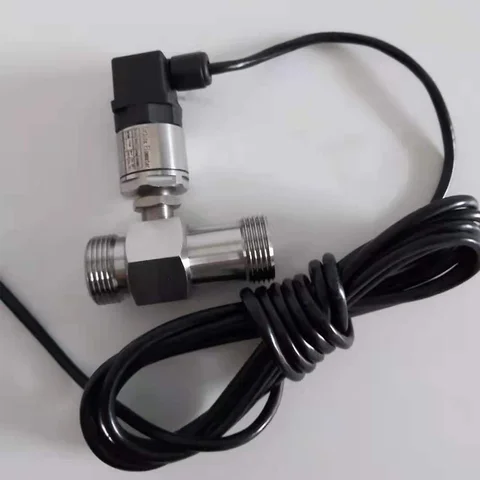

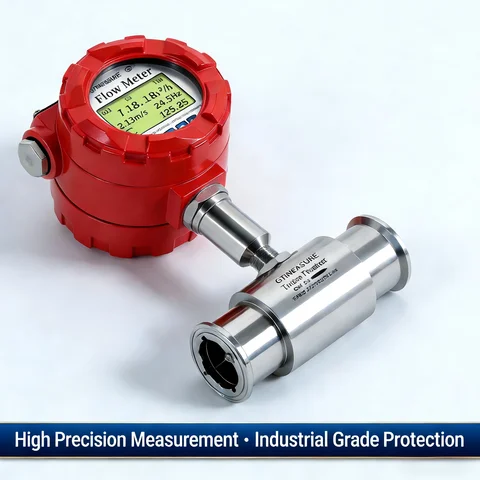

Feature	1-inch/1.5-inch/2-inch LCD Turbine Flow Meter	ZJ-LCD-M Flow Controller with Sensor & Valve	Air Flow Mass Meter (Auto Part)
Flow Type	Water, Diesel, Oil, Petrol	Water, Liquid (1–30 L/MIN)	Air (for vehicles)
Output Signal	4-20mA (implied via LCD + analog interface)	4-20mA (compatible with external control)	Not applicable (digital sensor)
Connection Type	Male BSPP Thread (1/2, 3/4, 1)	G1/2 Male BSPP Thread	Vehicle-specific connector
Display	Backlit LCD (1, 1.5, 2)	LCD Display + Digital Readout	None (used in ECU)
Integrated Valve	No	Yes (Normally Closed Magnetic Valve)	No
Power Supply	External (12–24V DC)	External (12V DC)	Vehicle Electrical System
Compliance	CE, RoHS, FCC, UL, TGA, EAC, EPA, GMP, KC, PSE, WEEE	CE, NONE	None listed
Best For	Industrial fluid monitoring, water & fuel systems	Controlled liquid flow with automatic shutoff	Vehicle air intake diagnostics

Recommendations and Best Practices

- Verify signal compatibility: Ensure your control system accepts 4-20mA input. Most PLCs and data loggers do, but confirm the input impedance (typically 250Ω–500Ω).
- Use shielded cables: For long-distance runs (>10 meters), use twisted-pair shielded cables to reduce noise.
- Install a termination resistor: Place a 250Ω resistor across the input terminals of the receiving device to convert current to voltage (e.g., 4–20mA → 1–5V).
- Check for grounding issues: Avoid ground loops by grounding the signal at one point only—typically at the control system end.
- Perform regular calibration: Even high-precision meters drift over time. Calibrate every 6–12 months or after major maintenance.

Final Thoughts

The 4-20mA flow meter is a cornerstone of modern fluid monitoring, combining durability, accuracy, and seamless integration with automation systems. Whether you're managing diesel flow in a generator, controlling water in a plant, or monitoring chemical dosing, selecting a meter with the right specifications—such as flow range, output type, and compatibility with valves and control systems—ensures long-term reliability. Prioritize models with CE, RoHS, and UL certifications for safety and compliance. With proper installation and maintenance, a 4-20mA flow meter delivers years of trouble-free operation in even the most demanding environments.
