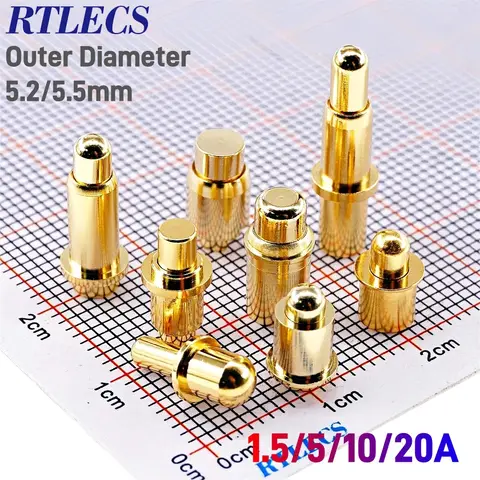

Construction of Pogo Pins Pogo pins consists of a plunger, a spring, and a housing. The plunger is typically made of brass or other conductive material and is designed to fit into a corresponding connector. The spring provides the necessary force to keep the plunger in contact with the mating surface. The housing, usually made of insulating material, holds the spring and plunger in place.

There are two main types of pogo pins: surface-mount and through-hole. Surface-mount pogo pins are designed to be mounted on the surface of a printed circuit board and are held in place by the solder. Through-hole pogo pins are designed to be inserted through a hole in the printed circuit board and are held in place by a mechanical fastener.

Pogo pins are available in a wide range of sizes and shapes, depending on the application. Some pogo pins are designed to be used in high-current applications, while others are designed for low-current applications. Additionally, some pogo pins are designed to withstand harsh environmental conditions, such as extreme temperatures, vibrations, and shock.

Applications of Pogo Pins Pogo pins are used in a wide range of applications, including:

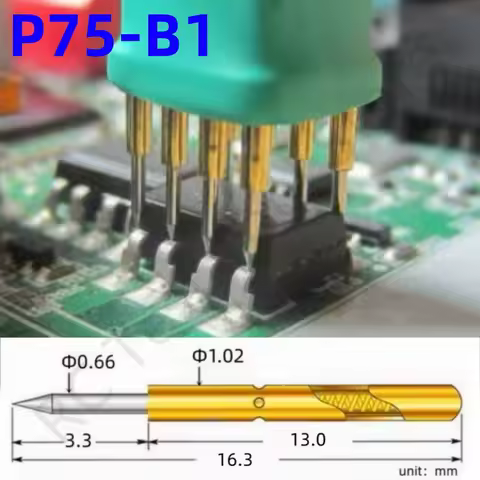

2.1 Testing and Programming Pogo pins are commonly used in the testing and programming of electronic devices. They are used to establish a temporary connection between the device under test and the testing equipment or programming tool. This allows the device to be tested or programmed quickly and easily without the need for a permanent connection.

2.2 Battery Charging Pogo pins are often used in battery charging applications. They are used to establish a temporary connection between the battery and the charging device. This allows the battery to be charged quickly and easily without the need for a permanent connection.

2.3 Medical Devices Pogo pins are used in a variety of medical devices, including glucose meters, insulin pumps, and other medical monitoring and diagnostic equipment. They are used to establish a temporary connection between the device and the patient or the testing equipment.

2.4 Automotive Applications Pogo pins are used in a variety of automotive applications, including engine management systems, diagnostic tools, and battery chargers. They are used to establish a temporary connection between the vehicle and the testing equipment or charging device.

Advantages of Pogo Pins There are several advantages to using pogo pins in electronic applications, including:

3.1 Quick and Easy Connection Pogo pins allow for quick and easy connection between two electronic devices or between an electronic device and an external connector. This makes them ideal for applications where the connection needs to be established and disconnected quickly and frequently.

3.2 High-Reliability Pogo pins provide a high level of reliability and consistency in their electrical performance. This is due to the use of a spring mechanism, which ensures that the plunger is always in contact with the mating surface.

3.3 Customizable Pogo pins are available in a wide range of sizes and shapes, making them highly customizable to fit specific applications. Additionally, the plunger can be designed to fit specific connectors, ensuring a perfect fit and reliable connection.

3.4 Space-Saving (continued) reducing the overall size of the electronic device. Additionally, pogo pins can be designed to be stackable, allowing for multiple connections to be made in a small space.

3.5 Low Maintenance Pogo pins require minimal maintenance, as they are designed to be used in temporary connections. They do not require any special cleaning or maintenance procedures and can be easily replaced if they become damaged or worn.
